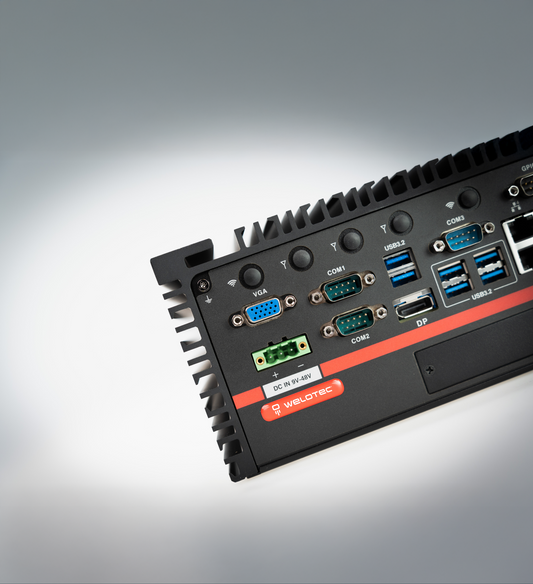

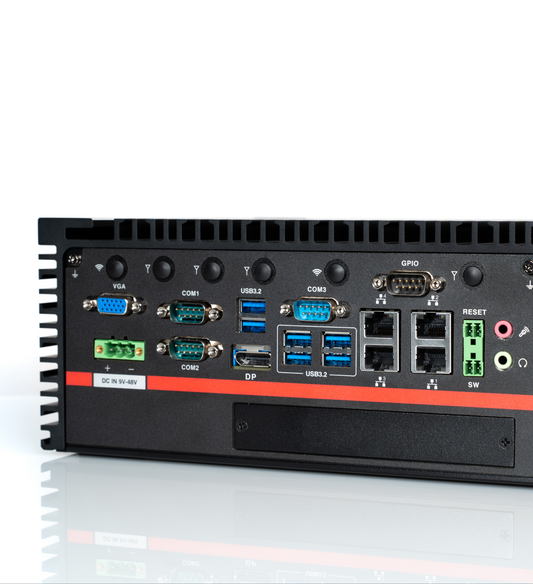

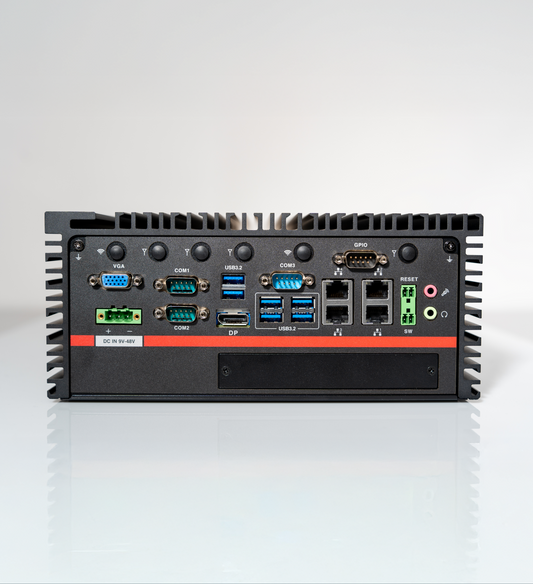

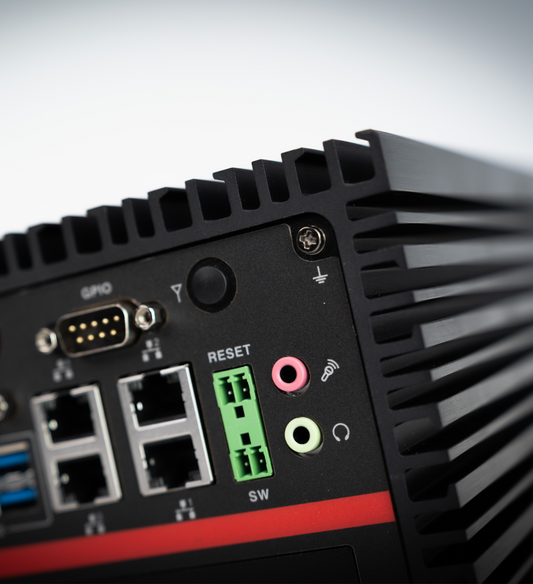

Fanless High-Performance Industrial Computer Alderamin Mk5 Series

Welotec

Lüfterlos

Modular Design

The Alderamin Mk5 is a high-performance industrial computer designed for maximum productivity and reliability in demanding environments. With a modular structure and powerful components, it provides the ideal solution for machine builders and industrial applications.

  • High Performance: up to 64GB RAM and fanless design for reliable, powerful operation.
  • Modular Design: Up to 11 COM ports and 12 LAN ports for flexible customization.
  • Built for Tough Environments: Fanless build reduces maintenance in industrial settings.

CPU:

ab 1623

.89

Preis exkl. MwSt

Azure Certified Device

Azure Edge Verwaltet

Betriebstemperatur

Großer Betriebstemperaturbereich für störungsfreien Betrieb in rauen Umgebungen.

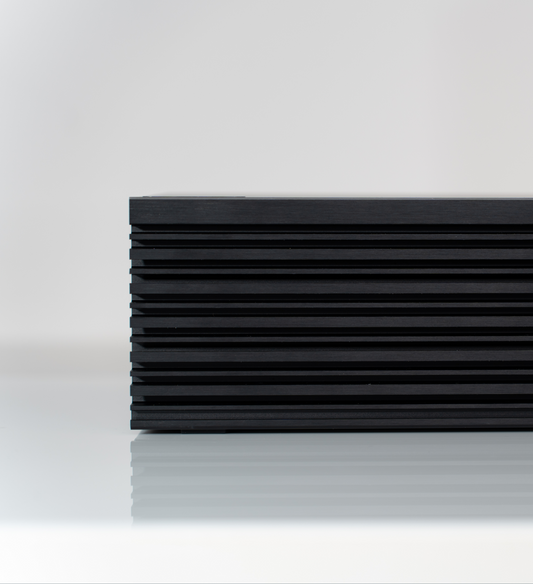

Lüfterloses System

Das fortschrittliche passive Kühlsystem ermöglicht einen lüfterlosen Betrieb selbst unter Volllast und in rauen Umgebungen.

Modular Design

Flexible CPU, storage, and expansion options for tailored systems.

Powerful Performance

Intel Core i9 and up to 64GB of memory for maximum performance.

Alderamin Mk5 Series
Technische Details

General data

Power button Yes
Reset button No
Cooling Fanless

Graphics

Graphic chip (GPU) (i3/i5) Intel® UHD Graphics 730, (i7/i9) Intel® UHD Graphics 770
HDMI 1x
VGA 1x
Display port 1x
Amount simultaneous displays 3x
Resolution max HDMI: 4096 x 2160 @ 60Hz, DP: 7680 x 4320 @ 60Hz

Ethernet

Connector TX RJ45
10/100/1000BaseTX Ports 4x (10/100/1000/2500)

Additional interfaces

RS-232/422/485 3x
USB 3.0 8x
Line-out 1x
Mic-in 1x

Expansion slots

PCIe 16x 1x

Power supply

Power supply V DC 9-48V DC

Physical characteristics

Housing material Aluminum/Steel
Ingress protection
Dimensions (W x H x D) 268 x 108 x 246 mm
Weight 6,9 kg
Mounting Wall Mount
Housing color Black

Environmental

Operating temperature range 35W TDP Processor: -40°C to 70°C / 65W TDP Processor: -40°C to 50°C
Humidity 10% ~ 90% R/H (Non-condensing)
Vibration Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
Shock Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)

Approvals

CE (EU) Yes
RoHS Yes
REACH Yes
FCC Yes

CPU type i3-14100T
CPU cores 4C/8T
Passmark ~13.000
Memory / RAM capacity DDR5, up to 64GB
Betriebssysteme

Efficiency Meets Power

Alderamin Mk5 with Intel Core Processors

The fanless Industrial High-Performance Computer Alderamin Mk5 stands out with its Intel Core processor lineup, built to handle the toughest industrial applications. The system offers flexible configurations, starting with the Intel® Core™ i3-14100T processor, featuring 4 cores and 8 threads—a reliable choice for standard applications. The Intel® Core™ i5-14400T, with 10 cores and 16 threads, boosts multitasking capabilities, making it ideal for data-heavy tasks.

For more demanding applications, the Alderamin Mk5 includes the Intel® Core™ i7-14700T, with 20 cores and 28 threads, efficiently managing complex calculations and parallel workloads. Leading the lineup is the Intel® Core™ i9-14900T, a powerhouse with 24 cores and 32 threads, built to deliver unparalleled performance for high-stakes industrial needs. With its range of processor options, the Alderamin Mk5 provides adaptable, top-tier performance in a durable, fanless design built for continuous operation in challenging environments.
