Reliable LTE 450 Industrial Router for Secondary Substations TK800 Series

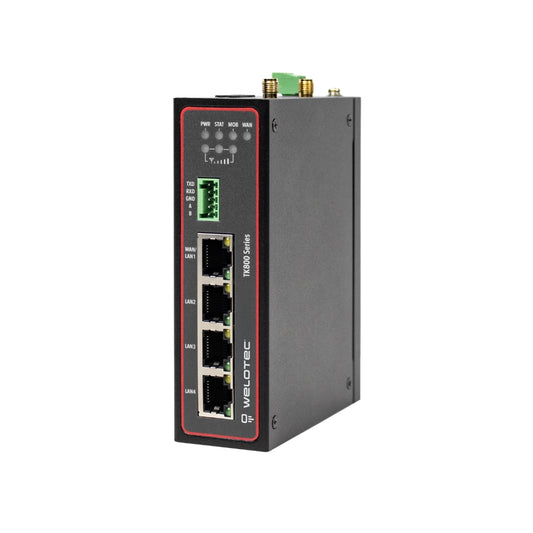

Welotec TK804L1-450

6912TK804451

LTE 450

Dual SIM

EMC compatibility

  • 4G & LTE450 MHz
  • Router with DIN-Rail mounting
  • Rugged metal enclosure
  • Central management (Smart EMS) and VPN concentrator (VPN Security Suite) available
  • Industrial VPN Router with Dual SIM
  • RS-485 & RS-232

4G/LTE support

Supports all 4G/LTE frequency bands.

450 MHz LTE

LTE 450 MHz (Band 31 and Band 72)

Dual SIM

Dual SIM with auto-fallback for enhanced availabilty and reliability

Device Management

Easy rollout of VPN configurations and certificates to connected Welotec devices (incl. Docker Container).

Operating temperature

Wide operating temperature range for trouble-free operation in harsh environments.

DIN-Rail mounting

Designed to be used in switching cabinets with DIN-Rail mounting.

TPM 2.0 Module

Integrated Trusted Platform Module for secure device provisioning and authentication.

EMC compatibility

High electromagnetic compatibility according to EN61000-4 for use in highly polluted environments

TK800 Series
Technical Details

General Data

Model TK804L1-450
Series TK800
Chipset Quectel EG912N-EN

Cellular Characteristics

4G standard 4G LTE CAT 1 including LTE450 MHz
Frequency bands LTE FDD: B1/ B3/ B5/ B7/ B8/ B20/B28/B31/B72
GSM: 900/1800MHz
Download (max) 10 Mbps
Upload (max) 5 Mbps
Antenna connector 2x SMA (f) (for Quectel EC200S-EN only Main Antenna is functional)

Ethernet Characteristics

Connector TX RJ45
10/100BaseTX 4 Ports (1 of them configurable as WAN)
IEEE 802.3 10BaseT
IEEE 802.3a 10Base2
IEEE 802.3i 10BaseT
IEEE 802.3u 100BaseT(X) / Fast Ethernet

Serial interfaces

Amount 2
Type RS-232, RS-485
Serial interface TXD, RXD, GND, A(RS-485+), B(RS-485-)
Connector Terminal blocks 5-pin (m)
Baud rate 1200 - 115200 bps
Additional protocols Transparent TCP, Virtual COM, Modbus TCP / RTU

Additional interface

Console port 1 console port (RS-232)
SIM card slot 2x 2FF (Dual SIM)
WAN port 1 x
IEEE 802.1q VLAN (dot1q)

Network Characteristics

Routing Static routes and dynamic routes with RIP or OSPF
Network protocols ICMP, TCP, IP, UDP, DHCP, NTP, DNS, HTTP, HTTPS, Telnet, ARP, VRRP, PPP, SSH
IP protocols IPv4, IPv6, DHCPv6-PD
Security TPM 2.0
Connection inspection PPP LCP echo and ICMP keep alive and IP SLA / tracking for checking connections
NAT and PAT Network Address Translation (NAT) and Port Address Translation (PAT)
DDNS (DynDNS) Supports Dynamic DNS
VRRP Automatically switch to slave router if the master router fails
IPsec IKEv1, IKEv2, Pre Shared Keys, Certificates, Tunnel mode, Transport mode, Routed IPSec, DMVPN
L2TP Client, Server, L2TP over IPSec
OpenVPN Client, Server
GRE Point-to-Point, Subnet, GRE over IPSec
VPN authentication Preshared key, digital certificates
Firewall Stateful Packet Inspection (SPI), ACLs
Access control ACLs, RADIUS, TACACS+, LDAP
Realtime clock Provides the system with the current time

Advances functions

LED 3 LED indicators for the signal strength, 4 status LEDs: PWR, STAT, MOB, VPN

Power supply

Power supply V DC 9 - 36 V DC
Connector Terminal blocks 2-pin (m)

Physical characteristics

Housing material Metal
Ingress protection IP30
Dimensions (W x H x D) 35 x 127 x 108 mm
Weight 457 g
Mounting DIN rail

Enviromental

Operating temperature -25 - +70 °C
Storage temperature -40 - +85 °C

EMC, EMI Characteristics

EMC EN 61000-4, Level 3
