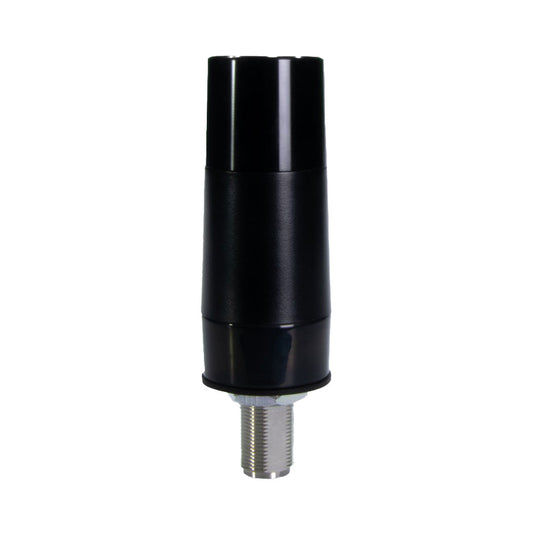

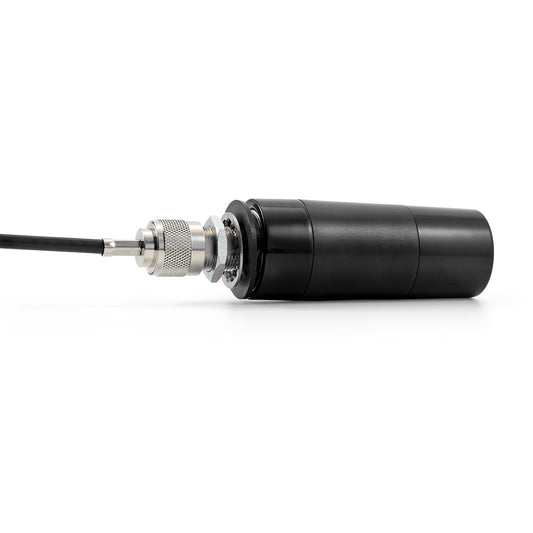

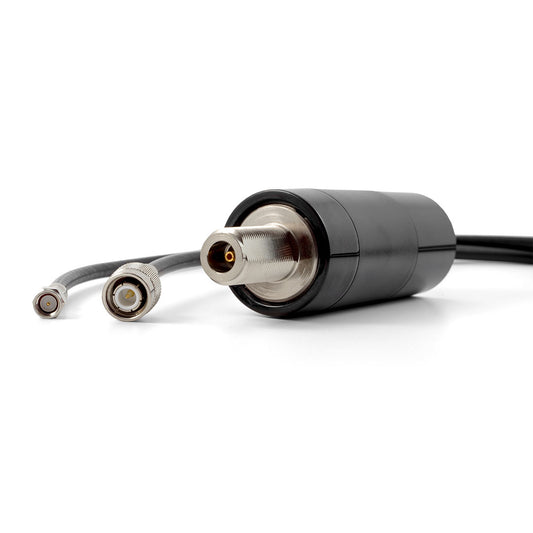

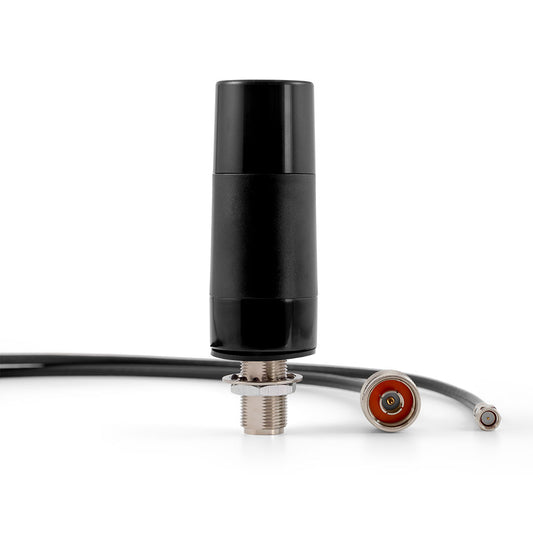

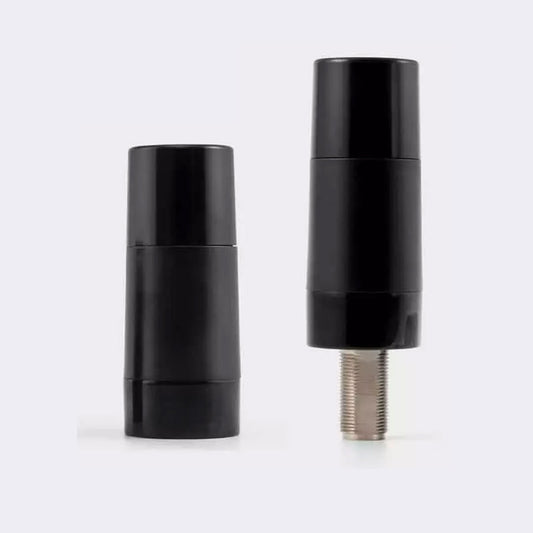

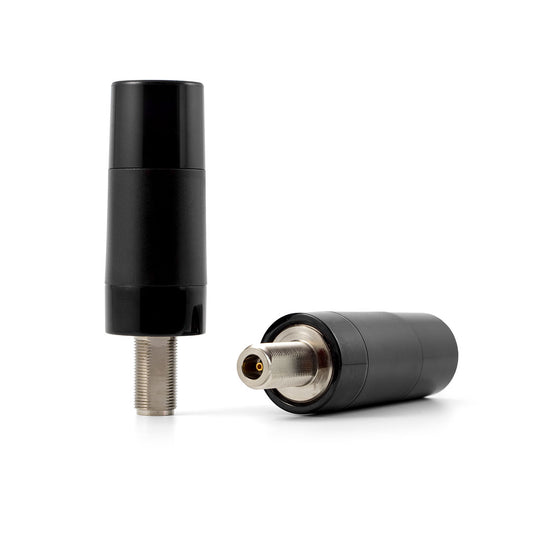

4G High-Performance Antenna
0%
Secure Payment
Technical Details
Antenna characteristics
| Antenna elements | 1x 4G |
| Frequency range | 450-470 / 698-960 / 1710-2700 MHz |
| Antenna gain | 3 dBi |
| Compatible with | GSM/GPRS/EDGE, UMTS, 4G, WiFi (2.4 GHz), Bluetooth, Zigbee, LoRa, Sigfox, 869MHz |
General data
| Antenna type | 4G Antenna |
| Construction type | Low-Profile Antenna |
| Application area | Indoor/Outdoor |
| Radiation characteristic | Omnidirectional |
| Integrated Antenna elements | 1x 4G |
| Groundplane needed | No |
| GSM/GPRS/EDGE frequencies | 850 / 900 / 1800 / 1900 MHz |
| 4G frequencies | 450 / 700 / 800 / 1800 / 2100 / 2600 MHz |
| WIFI frequencies | 2.4 GHz |
| License-free bands | 869 MHz range |
| Gain (typical) | 3 dBi |
| VSWR | <2.5:1 |
Electrical characteristics
| Transmission power (max) | 100 W |
| Impendance | 50 Ohm |
| Polarization | Vertical |
Physical characteristics
| Material | XENOY 572OU-7014, UV-Stable |
| Dimensions | without N-Adapter: 36.4 x 88.5 mm / with N-Adapter: 36.4 x 118 mm (diameter x height) |
| Protection class | IP66 |
| Mounting options | Screw mounting, Wall mounting, Magnetic foot mounting, Pole mounting |
| Operating temperature range | -40 - +70°C |
Technical Details
Antenna characteristics
| Antenna elements | 1x 4G |
| Frequency range | 450-470 / 698-960 / 1710-2700 MHz |
| Antenna gain | 3 dBi |
| Compatible with | GSM/GPRS/EDGE, UMTS, 4G, WiFi (2.4 GHz), Bluetooth, Zigbee, LoRa, Sigfox, 869MHz |
General data
| Antenna type | 4G Antenna |
| Construction type | Low-Profile Antenna |
| Application area | Indoor/Outdoor |
| Radiation characteristic | Omnidirectional |
| Integrated Antenna elements | 1x 4G |
| Groundplane needed | No |
| GSM/GPRS/EDGE frequencies | 850 / 900 / 1800 / 1900 MHz |
| 4G frequencies | 450 / 700 / 800 / 1800 / 2100 / 2600 MHz |
| WIFI frequencies | 2.4 GHz |
| License-free bands | 869 MHz range |
| Gain (typical) | 3 dBi |
| VSWR | <2.5:1 |
Electrical characteristics
| Transmission power (max) | 100 W |
| Impendance | 50 Ohm |
| Polarization | Vertical |
Physical characteristics
| Material | XENOY 572OU-7014, UV-Stable |
| Dimensions | without N-Adapter: 36.4 x 88.5 mm / with N-Adapter: 36.4 x 118 mm (diameter x height) |
| Protection class | IP66 |
| Mounting options | Screw mounting, Wall mounting, Magnetic foot mounting, Pole mounting |
| Operating temperature range | -40 - +70°C |
