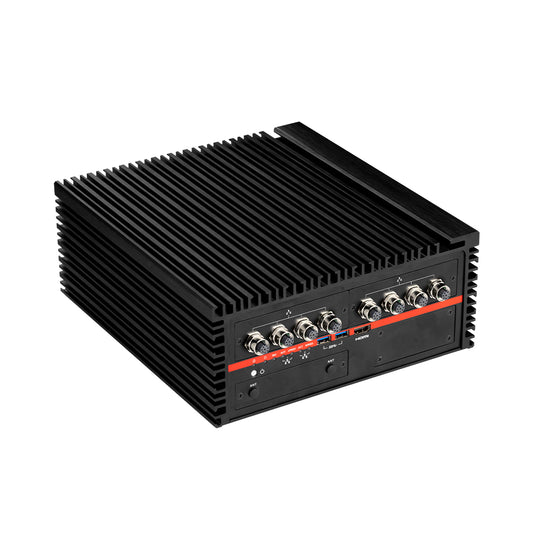

Rugged Railway Automation Computer RRAPC
0
.00
€
Price excl. VAT
0
.00
€
Price excl. VAT
Technical Details
Operating Systems
General data
| Type | Industrial Computer (EN50155) |
| Series | Rugged Railway Automation Computer |
| Power button | Yes |
| Reset button | Yes |
| Cooling | Fanless |
CPU
| CPU type | Intel® Xeon™ E-2176G / Intel® Core™ i3-9100E |
Graphics
| Graphic chip (GPU) | Intel HD Graphics |
| HDMI | 1 |
| DVI-I | 1 |
| Display port | 1 |
| Amount simultaneous displays | 3 |
| Resolution max | 4096 x 2160 @ 60 Hz |
Ethernet
| TX connection | RJ45 |
| 10/100/1000BaseTX Ports | 2 |
| Connection PoE+ TX | M12 |
| 10/100/1000BaseTX PoE+ Ports | 8 |
Additional interfaces
| RS-232/422/485 | 2 |
| USB 2.0 | 2 |
| USB 3.0 | 6 |
| Line-out | 1 |
| Mic-in | 1 |
Expansion slots
| PCIe 16x | 1 |
Power supply
| Power supply V DC | 9 - 48 V DC |
Physical characteristics
| Housing material | Steel / Aluminium |
| Ingress protection | IP20 |
| Dimensions (W x H x D) | 268 x 246 x 108 mm |
| Weight | 6000 g |
| Mounting | Wall mount |
| Housing color | Black |
Environmental
| Operating temperature range | -40 - +70 °C |
| Humidity | 10 - 90 % |
| Vibration | Operating: 5Hz~500Hz / 5Grms / 3Axis |
| Shock | Operating: 50 Grms, Half-sine 11 ms Duration |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
| EN50155 | Yes |
| EN50121-3-2 | Yes |
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 11 Pro
Windows 11 IoT
Linux Ubuntu Version on request
Open Source - no license cost Possible to modify OS to demand Purpose build Images with less attack surface RealTime Kernel options available
Windows Server Version on request
