Rackmount Vega Series
0
.00
€
Price excl. VAT
0
.00
€
Price excl. VAT
Rackmount
Convenient 19 inch 4U rack mount form factor for space saving operation in a closed cabinet.
Intel Xeon CPU
Scalable CPU options from Intel 4-core i3 CPU to Intel Xeon 6-core CPU.
Modular design
Many storage options and expansion slots enable tailor made systems.
Flexible power supply
The power supply can be flexibly adapted to your requirements, whether 100 - 240 VAC or 24 - 240 VDC.
ECC
Integrated error correction procedure in which redundant information is generated to correct data errors.
Active cooling
Active cooling allows even high-performance expansion cards to be used in challenging environmental conditions.
Technical Details
Operating Systems
General data
| Power button | Yes |
| Reset button | Yes |
| Cooling | Active |
Storage
| Bays 3.5 inch | 8 |
| Bays 5.25 inch | 2 |
| Interface mSATA | 1 |
| Interface NVMe (M.2) | 1 |
| Interface for bays | SATA 3.0 |
| Amount connections for bays | 4 |
| Hot swappable | Optional |
Graphics
| Graphic type | On board integrated |
| Graphic chip (GPU) | Intel® UHD Graphics P630 / Intel® UHD Graphics 630 |
| Direct X Level | 12 |
| OpenGL | 4.5 |
| VGA | 1 |
| Display Port++ | 2 |
| Amount simultaneous displays | 3 |
| Resolution max | 4096 x 2304 @ 60 Hz |
Additional interfaces
| RS-232 | (4 Optional) |
| RS-232/422/485 | 1 (1 Optional) |
| USB 2.0 | 4 |
| USB 3.0 | 4 |
| Line-out | 1 |
| Mic-in | 1 |
| PS2 | 1 |
Expansion slots
| PCIe 16x | 2 (1 x16 Signal or 2 x 8 Signals) |
| PCIe 4x | 3 |
| PCIe 1x | 1 |
| PCI | 1 |
| mPCI | 1 |
Ethernet
| Connector TX | RJ45 |
| 10/100/1000BaseTX ports | 2 |
Power supply
| Power supply V AC | 100 to 240 V AC (default) 20 to 36 V DC (optional) -36 to -72 V DC (optional) 110 to 220 V DC (optional) |
| Performance power supply | 400 W (500 W redundant optional) |
| Redundancy | All power supplys are optionally available as redundant versions |
Physical characteristics
| Housing material | SGCC Metal |
| Dimensions (W x H x D) | 483 x 177 x 450 mm |
| Weight | min 20.000 g depending on configuration |
| Mounting | 19 Inch Rackmount |
| Housing color | Black |
Environmental
| Operating temperature range | -10 - +50 °C |
| Storage temperature range | -20 - +60 °C |
| Humidity | 10 - 90 % |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Xeon® E-2176G |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.70 - 4.70 GHz |
| CPU cores / threads | 6 / 12 |
| L2 cache | 12 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | Yes |
| Frequency | 2666 MHz |
| Voltage | 1.2 V |
| Capacity | 128 GB |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Xeon® E-2124G |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.40 - 4.50 GHz |
| CPU cores / threads | 4 / 4 |
| L2 cache | 8 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | Yes |
| Frequency | 2666 MHz |
| Voltage | 1.2 V |
| Capacity | 128 GB |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Core™ i5-9500E |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.00 - 4.20 GHz |
| CPU cores / threads | 9 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | No |
| Frequency | 2400 MHz |
| Voltage | 1.2 V |
| Capacity | 128 GB |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Core™ i3-9100E |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.10 - 3.70 GHz |
| CPU cores / threads | 4 / 4 |
| L2 cache | 6 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | Yes |
| Frequency | 2400 MHz |
| Voltage | 1.2 V |
| Capacity | 64 GB |
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 11 Pro
Windows 11 IoT
Linux Ubuntu
Windows Server Version on request
Technical Details
General data
| Power button | Yes |
| Reset button | Yes |
| Cooling | Active |
Storage
| Bays 3.5 inch | 8 |
| Bays 5.25 inch | 2 |
| Interface mSATA | 1 |
| Interface NVMe (M.2) | 1 |
| Interface for bays | SATA 3.0 |
| Amount connections for bays | 4 |
| Hot swappable | Optional |
Graphics
| Graphic type | On board integrated |
| Graphic chip (GPU) | Intel® UHD Graphics P630 / Intel® UHD Graphics 630 |
| Direct X Level | 12 |
| OpenGL | 4.5 |
| VGA | 1 |
| Display Port++ | 2 |
| Amount simultaneous displays | 3 |
| Resolution max | 4096 x 2304 @ 60 Hz |
Additional interfaces
| RS-232 | (4 Optional) |
| RS-232/422/485 | 1 (1 Optional) |
| USB 2.0 | 4 |
| USB 3.0 | 4 |
| Line-out | 1 |
| Mic-in | 1 |
| PS2 | 1 |
Expansion slots
| PCIe 16x | 2 (1 x16 Signal or 2 x 8 Signals) |
| PCIe 4x | 3 |
| PCIe 1x | 1 |
| PCI | 1 |
| mPCI | 1 |
Ethernet
| Connector TX | RJ45 |
| 10/100/1000BaseTX ports | 2 |
Power supply
| Power supply V AC | 100 to 240 V AC (default) 20 to 36 V DC (optional) -36 to -72 V DC (optional) 110 to 220 V DC (optional) |
| Performance power supply | 400 W (500 W redundant optional) |
| Redundancy | All power supplys are optionally available as redundant versions |
Physical characteristics
| Housing material | SGCC Metal |
| Dimensions (W x H x D) | 483 x 177 x 450 mm |
| Weight | min 20.000 g depending on configuration |
| Mounting | 19 Inch Rackmount |
| Housing color | Black |
Environmental
| Operating temperature range | -10 - +50 °C |
| Storage temperature range | -20 - +60 °C |
| Humidity | 10 - 90 % |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Xeon® E-2176G |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.70 - 4.70 GHz |
| CPU cores / threads | 6 / 12 |
| L2 cache | 12 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | Yes |
| Frequency | 2666 MHz |
| Voltage | 1.2 V |
| Capacity | 128 GB |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Xeon® E-2124G |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.40 - 4.50 GHz |
| CPU cores / threads | 4 / 4 |
| L2 cache | 8 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | Yes |
| Frequency | 2666 MHz |
| Voltage | 1.2 V |
| Capacity | 128 GB |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Core™ i5-9500E |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.00 - 4.20 GHz |
| CPU cores / threads | 9 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | No |
| Frequency | 2400 MHz |
| Voltage | 1.2 V |
| Capacity | 128 GB |
CPU
| CPU generation | Coffee Lake |
| CPU type | Intel® Core™ i3-9100E |
| CPU socket | FC-LGA14 |
| Embedded | Yes |
| CPU frequency | 3.10 - 3.70 GHz |
| CPU cores / threads | 4 / 4 |
| L2 cache | 6 MB |
Memory / RAM
| Socket type | U-DIMM |
| Number of slots | 4 |
| Storage type | DDR4 |
| ECC | Yes |
| Frequency | 2400 MHz |
| Voltage | 1.2 V |
| Capacity | 64 GB |
Operating Systems
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 11 Pro
Windows 11 IoT
Linux Ubuntu
Windows Server Version on request

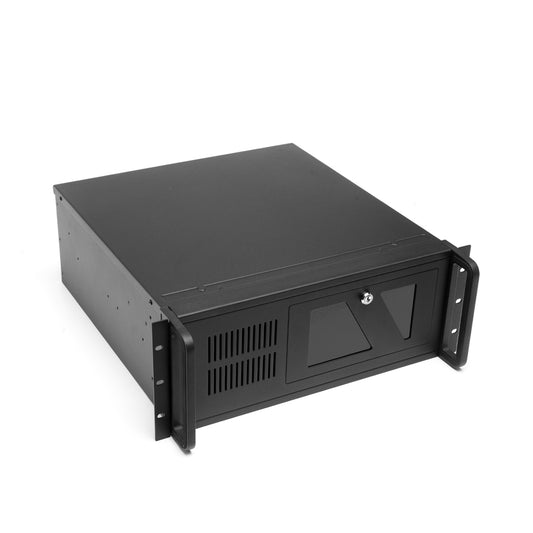

19 inch Rackmount PC
Vega Series
When a powerful industrial computer with the ability to adapt to specific applications is needed, a 19 inch rackmount PC is often the best bet. With the Vega series we offer a highly customizable system. Possible applications include virtualization, machine learning, automated optical inspection and classic control and automation tasks in the industrial sector.
The Vega series comes in an industry standard 19″ 4U rackmount housing. Thanks to the active cooling system, even high-performance components can be used. We deeply understand the needs of industrial applications, that’s why we rely on carefully selected industrial grade components with long term availability.
Applications
The Vega 19″ Rackmount PC can be used in a wide variety of applications. The great flexibility allows to configure the system with the right amount of processing power. Special interfaces and features can easily be added by using PCIe cards. The wide choice of power supplies enables the convenient use of any given power source.
Typical applications:
- Virtualization
- Automation and control applications
- Machine Learning / AI
- Machine Vision
- Automated Optical Inspection (AOI)
- Image processing
