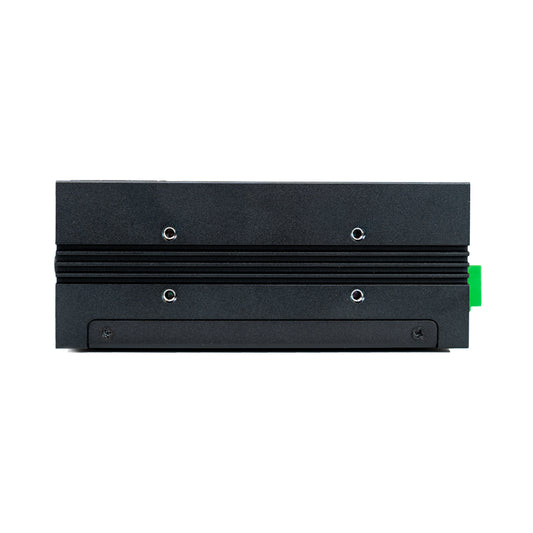

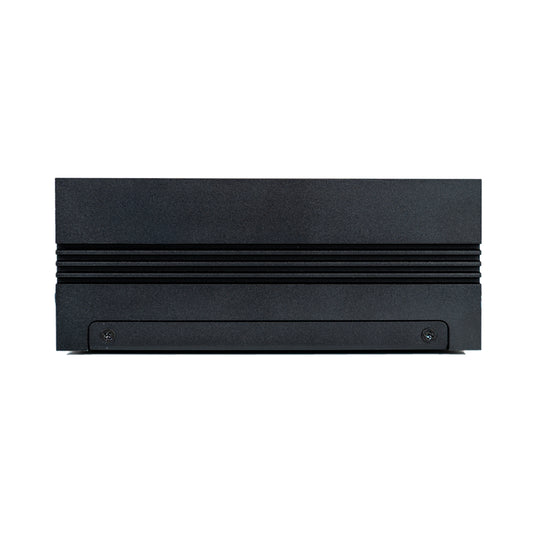

Alderamin Pico Mk5
Azure Certified Device
Azure Edge Managed
Operating temperature
Wide operating temperature range for trouble-free operation in harsh environments.
TPM 2.0 Module
Integrated Trusted Platform Module for secure device provisioning and authentication.
Efficient performance boost
Provides up to 70% more computing power than the previous model, while consuming less power for the same workloads.
Technical Details
Operating Systems
General data
| Power button | Yes |
| Reset button | No |
| Cooling | Fanless |
Graphics
| Graphic chip (GPU) | Intel® Graphics |
| HDMI | 1x |
| USB-C | 1x DP Alt Mode |
| Display port | 1x |
| Amount simultaneous displays | 3x |
| Resolution max | HDMI: 4096 x 2304 @ 60Hz, DP: 7680 x 4320 @ 60Hz |

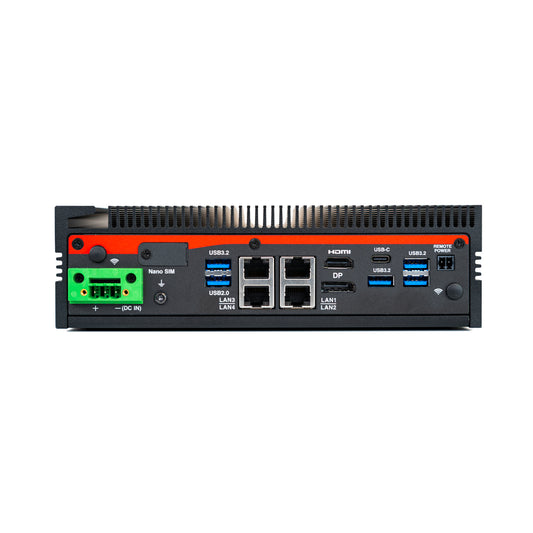

Ethernet
| Connector TX | RJ45 |
| 10/100/1000/2500BaseTX Ports | 4x (10/100/1000/2500) |
Additional interfaces
| RS-232/422/485 | 1x |
| RS-232 | 3x |
| GPIO | 1x 8 Bit |
| USB 2.0 | 2x |
| USB 3.0 | 4x |
| Line-out | 1x |
Expansion slots
| PCIe 16x | NA |
Power supply
| Power supply V DC | 8-26V DC |
Physical characteristics
| Housing material | Aluminum/Steel |
| Dimensions (W x H x D) | 210 x 63 x 150mm |
| Weight | 2,1 Kg |
| Mounting | Wall Mount, DIN-Rail (optional) |
| Housing color | Black |
Environmental
| Operating temperature range | -40°C to 60°C |
| Humidity | 10% ~ 95% R/H (Non-condensing) |
| Vibration | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) |
| Shock | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
| FCC | Yes |
CPU
| CPU type | Intel® Core™ Ultra 5 Processor 125U |
| CPU cores | 12C/14T (up to 4.3 GHz |
| Passmark | ~16000 |
| Memory / RAM capacity | DDR5, up to 48GB |
CPU
| CPU type | Intel® Core™ Ultra 7 Processor 155UL |
| CPU cores | 12C/14T (up to 4.8GHz) |
| Passmark | ~17000 |
| Memory / RAM capacity | DDR5, up to 48GB |
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Enterprise 2021
Windows 11 Pro
Windows 11 IoT
Technical Details
General data
| Power button | Yes |
| Reset button | No |
| Cooling | Fanless |
Graphics
| Graphic chip (GPU) | Intel® Graphics |
| HDMI | 1x |
| USB-C | 1x DP Alt Mode |
| Display port | 1x |
| Amount simultaneous displays | 3x |
| Resolution max | HDMI: 4096 x 2304 @ 60Hz, DP: 7680 x 4320 @ 60Hz |
Ethernet
| Connector TX | RJ45 |
| 10/100/1000/2500BaseTX Ports | 4x (10/100/1000/2500) |
Additional interfaces
| RS-232/422/485 | 1x |
| RS-232 | 3x |
| GPIO | 1x 8 Bit |
| USB 2.0 | 2x |
| USB 3.0 | 4x |
| Line-out | 1x |
Expansion slots
| PCIe 16x | NA |
Power supply
| Power supply V DC | 8-26V DC |
Physical characteristics
| Housing material | Aluminum/Steel |
| Dimensions (W x H x D) | 210 x 63 x 150mm |
| Weight | 2,1 Kg |
| Mounting | Wall Mount, DIN-Rail (optional) |
| Housing color | Black |
Environmental
| Operating temperature range | -40°C to 60°C |
| Humidity | 10% ~ 95% R/H (Non-condensing) |
| Vibration | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) |
| Shock | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
| FCC | Yes |
CPU
| CPU type | Intel® Core™ Ultra 5 Processor 125U |
| CPU cores | 12C/14T (up to 4.3 GHz |
| Passmark | ~16000 |
| Memory / RAM capacity | DDR5, up to 48GB |
CPU
| CPU type | Intel® Core™ Ultra 7 Processor 155UL |
| CPU cores | 12C/14T (up to 4.8GHz) |
| Passmark | ~17000 |
| Memory / RAM capacity | DDR5, up to 48GB |
Operating Systems
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Enterprise 2021
Windows 11 Pro
Windows 11 IoT
