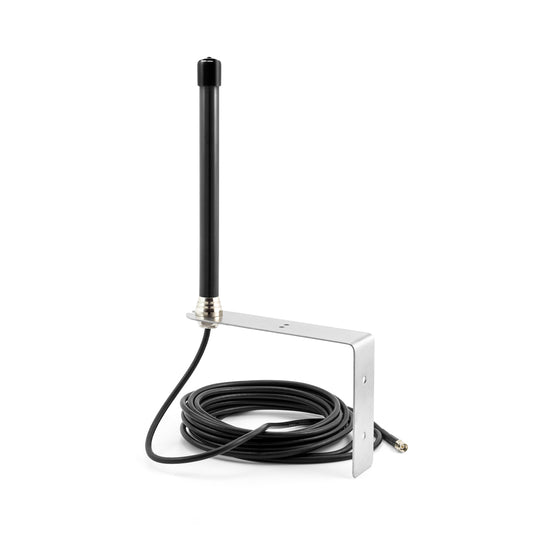

4G Angle Antenna
0%
Secure Payment
Technical Details
Antenna characteristics
| Antenna elements | 1x 4G |
| Frequency range | 698-960 / 1710-2700 MHz |
| Antenna gain | 3.4 dBi |
| Compatible with | GSM/GPRS/EDGE, UMTS, 4G, WiFi (2.4 GHz), Bluetooth, Zigbee, LoRa, Sigfox, 869MHz |
General data
| Antenna type | 4G Antenna |
| Construction type | Rod Antenna |
| Application area | Indoor/Outdoor |
| Radiation characteristic | Omnidirectional |
| Integrated Antenna elements | 1x 4G |
| Groundplane needed | No |
| GSM/GPRS/EDGE frequencies | 850 / 900 / 1800 / 1900 MHz |
| 4G frequencies | 700 / 800 / 1800 / 2100 / 2600 MHz |
| WIFI frequencies | 2.4 GHz |
| License-free bands | 869 MHz range |
| Gain (typical) | 3.4 dBi |
| VSWR | <1.4:1 |
Electrical characteristics
| Transmission power (max) | 25 W |
| Impendance | 50 Ohm |
| Polarization | Linear |
Physical characteristics
| Material | PC/ABS, UV-Stable |
| Dimensions | 36 x 325 x 155 mm (W x H x D) |
| Protection class | IP67 |
| Mounting options | Wall mounting |
| Operating temperature range | -40 - +85 °C |
