Rugged Substation Automation Computer RSAPC last time to buy is
Last shipment date is
A reliable solution designed for long‑term availability and support.
Discover future-proof alternatives for

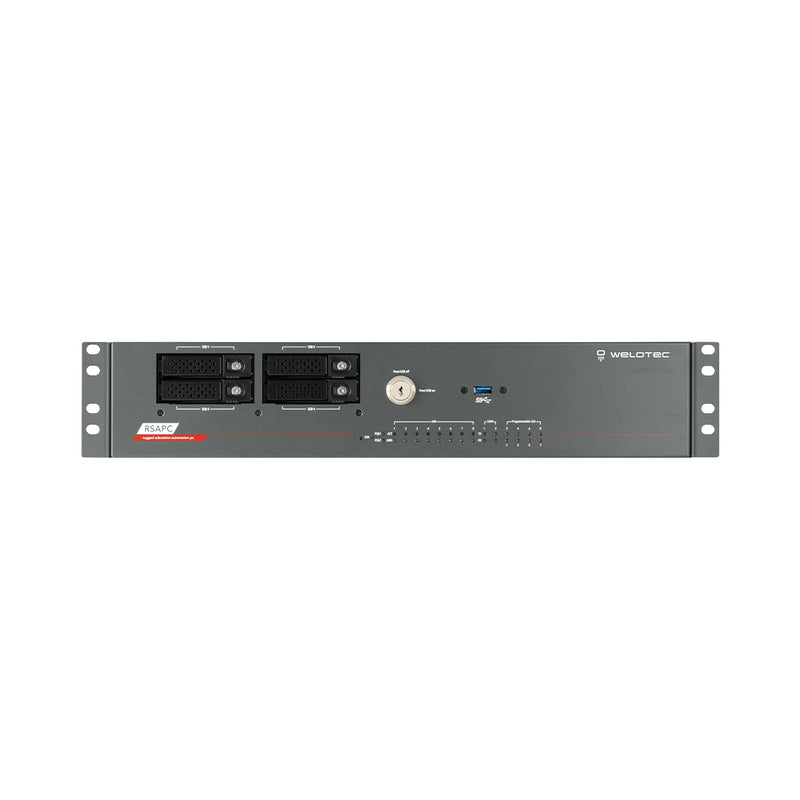

Rugged Substation Automation Computer RSAPC
Rugged Substation Automation Computer RSAPC
0%
Secure Payment
Azure Edge Managed
Azure Certified Device
Virtualization
Powerful system enables the reduction of hardware in the substation through the use of virtualization.
Fanless system
Advanced passive cooling system provides fanless operation even under full load and in harsh environments.
Operating temperature
Wide operating temperature range for trouble-free operation in harsh environments.
3U Rack Mount
19 inch 3U rack mount
CPU Intel Xeon
Intel Xeon CPU with four cores/eight threads
IEC 61850 and IEEE 1613
Rugged system specially made for power substations.
Technical Details
Operating Systems
General data
| Typ | 19 inch Fanless Rackmount IPC |
| Series | Rugged Substation Automation PC |
| Supported Operating Systems | Windows Server 2016 / Windows Server 2016 Datacenter / Windows Server 2019 / Windows 10 Professional / Windows 10 IoT Enterprise 2016 LTSB / Windows 10 IoT Enterprise 2019 LTSC / Linux Ubuntu |
CPU
| CPU | Intel® Xeon® Processor E3-1505L v6 |
| Generation | Kaby Lake, 7. Generation |
| Available till | 2026 |
| Frequency / Frequency max | 2.2 GHz / 3.0 GHz |
| Cores / Threads | 4 Cores / 8 Threads |
| L2 cache | 8 MB |
| Passmark CPU Perfomance | ~7800 |
Memory / RAM
| Socket type | 2x SO-DIMM 1.2 V |
| Storage type | DDR4 ECC (2133 MHz) |
| Capacity | max. 64 GB |
Chipset
| Chipset | Intel CM238 Chipset |
Storage
| mSATA Socket | 1x Full Size Socket (max. 512 GB) |
| Internal Drive Bay | 2x 2.5 inch SATA HDD/SSD Hot Swappable Bay |
| SATA Controller | Intel CM238 SATA Controller provides standard AHCI and Intel RST RAID modes |
| Interface for Bays | SATA II 3.0 Gb/s |
| RAID | RAID Level 0, 1 |
Graphics
| Graphic chip (GPU) | Intel® HD P630 Graphics Controller |
| Direct X Level | Level 12 |
| OpenGL | 4.4 |
| Displays | DVI-D (max. 1920 x 1200 @ 60 Hz) / DisplayPort 1.2 (max. 4096 x 2304 @ 60 Hz) |
Interfaces & Features
| USB | 5x USB 3.0 (4x rear, 1x front with key lock) + 1x internal USB 3.0 onboard Type A |
| PCIe Expansion | 1x PCIe x16 slot, full length, full height / 3x PCIe x4 slot, full length, full height |
| Serial Ports | 2x RS-232/422/485 (DB9 with isolation) |
| Ethernet | 4x RJ45 10/100/1000 Mbps copper ports, Intel® Ethernet-Controller I210-IT |
| Real-Time Clock/Calendar | 3V 230mA PANASONIC CR2032L-JP-W-1A |
| BIOS | AMI UEFI |
| Trusted Platform Module | Infineon SLB9665XT2.0 TPM2.0 |
Power supply
| Power supply | 2x slots for power supply unit modules |
| Fuse Ratings | AC 5 A / 25 V, DC T15 A / 400 V 5 HP |
| Terminal Connections | Current rating: 16 A, 300 V AC / Insulation withstands volt: 2000 V AC min / Insulation resistance: > 2000 M \Omega Ohm 500 V DC / Operation temperature: -40°C to +105°C / Wire strip length: 4 mm to 5 mm / Wire range: 12 to 24 AWG / Screw torque: 0.8 Nm (7 in-lb) |
Physical characteristics
| Housing colour | Pantone® Gray 446 |
| Dimensions (W x H x D) | 438 x 129 x 292 mm |
| Ingress protection | IP20 |
| Weight | 8500 g |
| Mounting | 19 Inch Rack |
Environmental
| Operating temperature range | -40 - +75 °C |
| Storage temperature range | -40 - +85 °C |
| Humidity | 5 % to 95 % @ 40 °C |
| Insulation Class | Class 1 |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
| FCC | Yes |
| UL/cUL | Yes |
| IEC 61850-3 | Yes |
| IEEE 1613 | Yes |
| CB | Yes |
| Azure Certifed Device | Yes |
| Edge managed (Azure) | Yes |
| AWS IoT Greengrass | Yes |
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows Server Version on request
Linux Ubuntu Version on request
Open Source - no license cost Possible to modify OS to demand Purpose build Images with less attack surface RealTime Kernel options available
Technical Details
General data
| Typ | 19 inch Fanless Rackmount IPC |
| Series | Rugged Substation Automation PC |
| Supported Operating Systems | Windows Server 2016 / Windows Server 2016 Datacenter / Windows Server 2019 / Windows 10 Professional / Windows 10 IoT Enterprise 2016 LTSB / Windows 10 IoT Enterprise 2019 LTSC / Linux Ubuntu |
CPU
| CPU | Intel® Xeon® Processor E3-1505L v6 |
| Generation | Kaby Lake, 7. Generation |
| Available till | 2026 |
| Frequency / Frequency max | 2.2 GHz / 3.0 GHz |
| Cores / Threads | 4 Cores / 8 Threads |
| L2 cache | 8 MB |
| Passmark CPU Perfomance | ~7800 |
Memory / RAM
| Socket type | 2x SO-DIMM 1.2 V |
| Storage type | DDR4 ECC (2133 MHz) |
| Capacity | max. 64 GB |
Chipset
| Chipset | Intel CM238 Chipset |
Storage
| mSATA Socket | 1x Full Size Socket (max. 512 GB) |
| Internal Drive Bay | 2x 2.5 inch SATA HDD/SSD Hot Swappable Bay |
| SATA Controller | Intel CM238 SATA Controller provides standard AHCI and Intel RST RAID modes |
| Interface for Bays | SATA II 3.0 Gb/s |
| RAID | RAID Level 0, 1 |
Graphics
| Graphic chip (GPU) | Intel® HD P630 Graphics Controller |
| Direct X Level | Level 12 |
| OpenGL | 4.4 |
| Displays | DVI-D (max. 1920 x 1200 @ 60 Hz) / DisplayPort 1.2 (max. 4096 x 2304 @ 60 Hz) |
Interfaces & Features
| USB | 5x USB 3.0 (4x rear, 1x front with key lock) + 1x internal USB 3.0 onboard Type A |
| PCIe Expansion | 1x PCIe x16 slot, full length, full height / 3x PCIe x4 slot, full length, full height |
| Serial Ports | 2x RS-232/422/485 (DB9 with isolation) |
| Ethernet | 4x RJ45 10/100/1000 Mbps copper ports, Intel® Ethernet-Controller I210-IT |
| Real-Time Clock/Calendar | 3V 230mA PANASONIC CR2032L-JP-W-1A |
| BIOS | AMI UEFI |
| Trusted Platform Module | Infineon SLB9665XT2.0 TPM2.0 |
Power supply
| Power supply | 2x slots for power supply unit modules |
| Fuse Ratings | AC 5 A / 25 V, DC T15 A / 400 V 5 HP |
| Terminal Connections | Current rating: 16 A, 300 V AC / Insulation withstands volt: 2000 V AC min / Insulation resistance: > 2000 M \Omega Ohm 500 V DC / Operation temperature: -40°C to +105°C / Wire strip length: 4 mm to 5 mm / Wire range: 12 to 24 AWG / Screw torque: 0.8 Nm (7 in-lb) |
Physical characteristics
| Housing colour | Pantone® Gray 446 |
| Dimensions (W x H x D) | 438 x 129 x 292 mm |
| Ingress protection | IP20 |
| Weight | 8500 g |
| Mounting | 19 Inch Rack |
Environmental
| Operating temperature range | -40 - +75 °C |
| Storage temperature range | -40 - +85 °C |
| Humidity | 5 % to 95 % @ 40 °C |
| Insulation Class | Class 1 |
Approvals
| CE (EU) | Yes |
| RoHS | Yes |
| REACH | Yes |
| FCC | Yes |
| UL/cUL | Yes |
| IEC 61850-3 | Yes |
| IEEE 1613 | Yes |
| CB | Yes |
| Azure Certifed Device | Yes |
| Edge managed (Azure) | Yes |
| AWS IoT Greengrass | Yes |
Operating Systems
Windows 10 Pro up to Version 1809
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 Pro from Version 1903
Receives security and feature updates No single function device license limitation Has individual license key 2-year update support w/o feature update
Windows 10 IoT Version LTSC 2019
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows 10 IoT Version LTSC 2021
Receives only security updates No incompatibility risk with feature updates Includes Unified Write Filter for hardening 5- yr (mainstream) to 10 yr (ext.) support
Windows Server Version on request
Linux Ubuntu Version on request
Open Source - no license cost Possible to modify OS to demand Purpose build Images with less attack surface RealTime Kernel options available
Best performance in harsh environments
The IEC 61850 certified RSAPC brings Server grade performance, reliability and security to the harsh operating environments and meets the stringent certification requirements for substation automation. The RSAPC offers:
- highly reliable wide temperature ECC memory
- solid states drives for silent operation without moving parts
- fanless thermal management system, utilizing heat pipes and a heating system to ensure reliable boot at sub-zero temperatures.
- High-performance Intel Xeon quadcore/octathread processor
- integrated TPM 2.0 module for advanced security and management
