Welotec

6WAX07000100

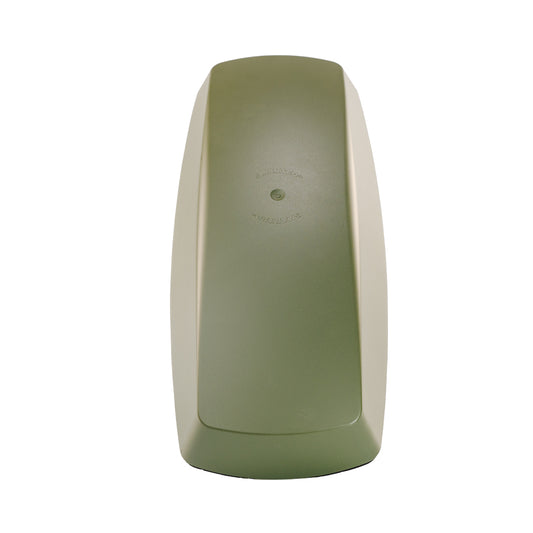

Low profile antenna with a single port for 4G/LTE 450 MHz to 5G FR1 frequencies
Low profile, height 54mm
Rugged design for demanding environments
Extra long Off Center Thread (OCT) with extension nut options
ECE-R118 certified
IP67

Typ:

WEL-01 Wide Band

WEL-01 Wide Band OCT

LTE 450, 4G, 5G Antenna

LTE 450, 4G, 5G Antenna

Technical Details

Main LTE 450 + 4G, 5G (Free Space)

	380-470MHz	698-790MHz	790-960MHz	1710-2690MHz	3400-5950MHz
Peak Gain	2.53 dBi	2 dBi	3 dBi	7.5 dBi	7.9 dBi
Efficiency	85%	69%	53%	78%	75%
VSWR	≤ 2.1:1	≤ 3:1	≤ 4:1	≤ 2:1	≤ 2:1
Nominal Impedance	50Ω	50Ω	50Ω	50Ω	50Ω
Polarization	Linear	Linear	Linear	Linear	Linear
Max. Power	10W	10W	10W	10W	10W

Main LTE 450 + 4G, 5G (1m Ground Plane)

	380-470MHz	698-790MHz	790-960MHz	1710-2690MHz	3400-5950MHz
Peak Gain	1.7 dBi	3 dBi	4.2 dBi	4.8 dBi	3 dBi
Efficiency	45%	63%	49%	52%	25%
VSWR	≤ 6:1	≤ 3:1	≤ 4:1	≤ 2:1	≤ 2:1
Nominal Impedance	50Ω	50Ω	50Ω	50Ω	50Ω
Polarization	Linear	Linear	Linear	Linear	Linear
Max. Power	10W	10W	10W	10W	10W

Mechanical and Environmental Specifications (All Models)


Dimensions (L x W x H)	280 x 120 x 54mm
Installation	Hole mount, Ø19mm; Installation thickness ≤ 64mm
Max. installation wall thickness	Available extension nuts: Ext. nut: 93mm, Ext. nut L :105mm, Ext. nut XL:121mm, Ext. nut XXL:156mm
Connector	SMA Male (450+5G)
Cable	RG316 0,5 m (450+5G)
Color	Green
IP Class	IP67
Storage Temperature	-40°C to +85°C
Operating Temperature	-40°C to +85°C

Technical Details

Main LTE 450 + 4G, 5G (Free Space)

	380-470MHz	698-790MHz	790-960MHz	1710-2690MHz	3400-5950MHz
Peak Gain	2.53 dBi	2 dBi	3 dBi	7.5 dBi	7.9 dBi
Efficiency	85%	69%	53%	78%	75%
VSWR	≤ 2.1:1	≤ 3:1	≤ 4:1	≤ 2:1	≤ 2:1
Nominal Impedance	50Ω	50Ω	50Ω	50Ω	50Ω
Polarization	Linear	Linear	Linear	Linear	Linear
Max. Power	10W	10W	10W	10W	10W

Main LTE 450 + 4G, 5G (1m Ground Plane)

	380-470MHz	698-790MHz	790-960MHz	1710-2690MHz	3400-5950MHz
Peak Gain	1.7 dBi	3 dBi	4.2 dBi	4.8 dBi	3 dBi
Efficiency	45%	63%	49%	52%	25%
VSWR	≤ 6:1	≤ 3:1	≤ 4:1	≤ 2:1	≤ 2:1
Nominal Impedance	50Ω	50Ω	50Ω	50Ω	50Ω
Polarization	Linear	Linear	Linear	Linear	Linear
Max. Power	10W	10W	10W	10W	10W

Mechanical and Environmental Specifications (All Models)


Dimensions (L x W x H)	280 x 120 x 54mm
Installation	Hole mount, Ø19mm; Installation thickness ≤ 64mm
Max. installation wall thickness	Available extension nuts: Ext. nut: 93mm, Ext. nut L :105mm, Ext. nut XL:121mm, Ext. nut XXL:156mm
Connector	SMA Male (450+5G)
Cable	RG316 0,5 m (450+5G)
Color	Green
IP Class	IP67
Storage Temperature	-40°C to +85°C
Operating Temperature	-40°C to +85°C
