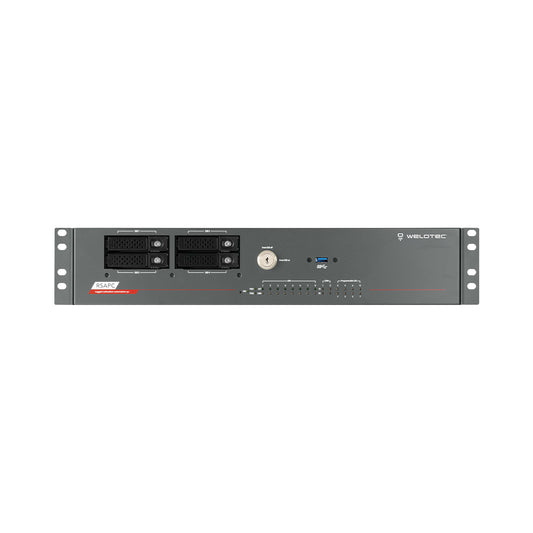

Rugged Substation Automation Computer RSAPC Mk2
3891
.60
€
Price excl. VAT
3891
.60
€
Price excl. VAT
Fanless system
Advanced passive cooling system provides fanless operation even under full load and in harsh environments.
IEC 61850-3 and IEEE 1613
Rugged system specially made for power substations.
Virtualization
Powerful system enables the reduction of hardware in the substation through the use of virtualization.
Intel Xeon CPU
Despite it's fanless design, the RSAPC Mk2 uses an Intel Xeon 8-core or 6-core CPU.
Rack mount
Convenient 19 inch 2U rack mount form factor for space saving operation in a closed cabinet.
Operating temperature
Wide operating temperature range for trouble-free operation in harsh environments.
Technical details
Operating Systems
General data
| Type | 19 inch Fanless Rackmount IPC |
| Series | Rugged Substation Automation PC |
| Supported Operating Systems | Microsoft Windows 10 IoT Enterprise 2021, Microsoft Windows Server Standard 2022, LF Energy SEAPATH pre-installation, Linux Ubuntu Desktop 22.04 LTS, Linux Debian 12 Desktop pre-installation , Linux Ubuntu Server 22.04 LTS, Linux Debian 12 Server pre-installation , VMware® ESXi® 8.0, Red Hat Enterprise Linux 9, Red Hat Enterprise Linux 9 for Real Time |
CPU 1
| CPU | Intel Xeon W-11865MLE with 8 Cores |
| Generation | Tiger Lake, 11. Generation |
| Available till | 2035 |
| Frequency / Frequency max. | 1.5/4.5 GHz |
| Cores / Threads | 8/16 |
| L3 cache | 24 MB |
| Passmark CPU Perfomance | ~16.000 |
CPU 2
| CPU | Intel Xeon W-11555MLE with 6 Cores |
| Generation | Tiger Lake, 11. Generation |
| Available till | 2035 |
| Frequency / Frequency max. | 1.9/4.4 GHz |
| Cores / Threads | 6/12 |
| L3 cache | 12 MB |
| Passmark CPU Perfomance | ~11.900 |
Memory / RAM
| Socket type | 4x SO-DIMM 1,2 V |
| Storage type | 3200MHz DDR4 |
| Capacity | max. 128 GB |
Chipset
| Chipset | Intel RM590E |
Mass storage
| m.2 Socket | 1x M.2 2280 NVMe up to 1TB |
| Internal Drive Bay | 4x 2.5 inch SATA HDD/SSD Hot Swappable Bay up to 4TB |
| SATA Controller | Intel RM590E SATA Controller provides standard AHCI and Intel VMD RAID Modes |
| Interface for Bays | SATA III 6.0 Gbit/s |
| RAID | RAID Level 0, 1, 5, 10 - Windows based OS only |
Graphics
| Graphic chip (GPU) | Intel® UHD Graphics for 11th Gen Intel® Processors |
| Direct X Level | Level 12.1 |
| OpenGL | 4.6 |
| Displays | 3x Display Port 4096 x 2304@60Hz |
Interfaces & Features
| USB | 5x USB 3.0 (4x rear, 1x front with key lock) + 1x internal USB 3.0 onboard Type A |
| PCIe Expansion | 1x PCIe x16 slot, full lenght, low profile / 3x PCIe x4 slot, full length, low profile |
| Serial Ports | 2x RS-232/422/485 (DB9 with isolation) |
| Ethernet | 8x RJ45 10/100/1000/2500 MBit copper ports, Intel® Ethernet Controller I226-IT |
| Time-Code Input | Main Board (Input only): 1 x TTL support IRIG-B with isolation / connector: DB-9 port / Time-code: Unmodulated IRIG-B TTL compatible |
| Real-Time Clock/Calendar | 3V 230mA PANASONIC CR2032L-JP-W-1A |
| BIOS | AMI UEFI |
| Trusted Platform Module | SLM9670AQ2.0 TPM2.0 |
Power supply
| Power supply | 2x slots for power supply unit modules |
Physical characteristics
| Housing color | Pantone® Gray 446 |
| Dimensions (W x H x D) | 438 x 88 x 302 mm |
| Ingress protection | IP20 |
| Weight | 8500 g |
| Mounting | 19" Rack |
Environmental
| Operating temperature range | -40 to +70 °C |
| Storage temperature range | -40 to +85 °C |
| Humidity | 5 % to 95 % @ 40 °C |
| Insulation Class | Class 1 |
Approvals
| CE | Yes |
| FCC | Yes |
| RoHS | Yes |
| UL/cUL | Yes |
| IEC 61850-3 | Yes |
| IEEE 1613 | Yes |
| CB | Yes |
| ICES | Yes |
| REACH | Yes |
Windows Server Standard 2022
LF Energy SEAPATH pre-installation
Linux Ubuntu Desktop 22.04 LTS
Linux Debian 12 Desktop pre-installation
Linux Debian 12 Server pre-installation
vmware ESXi 8.0
Linux Ubuntu Server 22.04 LTS
Windows 10 IoT Enterprise 2021
Red Head Enterprise Linux 9
Red Hat Enterprise Linux 9 for Real Time
Technical details
General data
| Type | 19 inch Fanless Rackmount IPC |
| Series | Rugged Substation Automation PC |
| Supported Operating Systems | Microsoft Windows 10 IoT Enterprise 2021, Microsoft Windows Server Standard 2022, LF Energy SEAPATH pre-installation, Linux Ubuntu Desktop 22.04 LTS, Linux Debian 12 Desktop pre-installation , Linux Ubuntu Server 22.04 LTS, Linux Debian 12 Server pre-installation , VMware® ESXi® 8.0, Red Hat Enterprise Linux 9, Red Hat Enterprise Linux 9 for Real Time |
CPU 1
| CPU | Intel Xeon W-11865MLE with 8 Cores |
| Generation | Tiger Lake, 11. Generation |
| Available till | 2035 |
| Frequency / Frequency max. | 1.5/4.5 GHz |
| Cores / Threads | 8/16 |
| L3 cache | 24 MB |
| Passmark CPU Perfomance | ~16.000 |
CPU 2
| CPU | Intel Xeon W-11555MLE with 6 Cores |
| Generation | Tiger Lake, 11. Generation |
| Available till | 2035 |
| Frequency / Frequency max. | 1.9/4.4 GHz |
| Cores / Threads | 6/12 |
| L3 cache | 12 MB |
| Passmark CPU Perfomance | ~11.900 |
Memory / RAM
| Socket type | 4x SO-DIMM 1,2 V |
| Storage type | 3200MHz DDR4 |
| Capacity | max. 128 GB |
Chipset
| Chipset | Intel RM590E |
Mass storage
| m.2 Socket | 1x M.2 2280 NVMe up to 1TB |
| Internal Drive Bay | 4x 2.5 inch SATA HDD/SSD Hot Swappable Bay up to 4TB |
| SATA Controller | Intel RM590E SATA Controller provides standard AHCI and Intel VMD RAID Modes |
| Interface for Bays | SATA III 6.0 Gbit/s |
| RAID | RAID Level 0, 1, 5, 10 - Windows based OS only |
Graphics
| Graphic chip (GPU) | Intel® UHD Graphics for 11th Gen Intel® Processors |
| Direct X Level | Level 12.1 |
| OpenGL | 4.6 |
| Displays | 3x Display Port 4096 x 2304@60Hz |
Interfaces & Features
| USB | 5x USB 3.0 (4x rear, 1x front with key lock) + 1x internal USB 3.0 onboard Type A |
| PCIe Expansion | 1x PCIe x16 slot, full lenght, low profile / 3x PCIe x4 slot, full length, low profile |
| Serial Ports | 2x RS-232/422/485 (DB9 with isolation) |
| Ethernet | 8x RJ45 10/100/1000/2500 MBit copper ports, Intel® Ethernet Controller I226-IT |
| Time-Code Input | Main Board (Input only): 1 x TTL support IRIG-B with isolation / connector: DB-9 port / Time-code: Unmodulated IRIG-B TTL compatible |
| Real-Time Clock/Calendar | 3V 230mA PANASONIC CR2032L-JP-W-1A |
| BIOS | AMI UEFI |
| Trusted Platform Module | SLM9670AQ2.0 TPM2.0 |
Power supply
| Power supply | 2x slots for power supply unit modules |
Physical characteristics
| Housing color | Pantone® Gray 446 |
| Dimensions (W x H x D) | 438 x 88 x 302 mm |
| Ingress protection | IP20 |
| Weight | 8500 g |
| Mounting | 19" Rack |
Environmental
| Operating temperature range | -40 to +70 °C |
| Storage temperature range | -40 to +85 °C |
| Humidity | 5 % to 95 % @ 40 °C |
| Insulation Class | Class 1 |
Approvals
| CE | Yes |
| FCC | Yes |
| RoHS | Yes |
| UL/cUL | Yes |
| IEC 61850-3 | Yes |
| IEEE 1613 | Yes |
| CB | Yes |
| ICES | Yes |
| REACH | Yes |
Operating Systems
Windows Server Standard 2022
LF Energy SEAPATH pre-installation
Linux Ubuntu Desktop 22.04 LTS
Linux Debian 12 Desktop pre-installation
Linux Debian 12 Server pre-installation
vmware ESXi 8.0
Linux Ubuntu Server 22.04 LTS
Windows 10 IoT Enterprise 2021
Red Head Enterprise Linux 9
Red Hat Enterprise Linux 9 for Real Time
Red Hat RHEL 9 RT cerfified
Azure Certified Device
Without compromising quality
Redefining Power
Virtualize Your Substation Applications
The virtualization of applications in substations is a significant step forward in energy infrastructure. IEC61850-3 compliant solutions make it possible to virtualize a wide range of applications in substations.
The integration of SCADA systems and human-machine interfaces (HMI) offers improved monitoring and control capabilities in substations and represents a significant advance in the energy infrastructure. IEC61850-3 compliant solutions enable virtualization of applications such as phase measurement (vPMU) and remote terminal units (RTU). Virtualization of firewall (vFW) functions contributes to safety and revolutionizes the way we operate and maintain substations. By applying artificial intelligence (AI) and machine learning (ML), processes can be optimized and anomalies detected at an early stage.
High Voltage Direct Current (HVDC)
HVDC efficiently transmits large amounts of power over long distances, connects renewable energy sources, and stabilizes electrical grids.
Flexible Alternating Current Transmission Systems (FACTS)
FACTS enhance grid stability and efficiency by managing power quality and adapting to decentralized renewable energy sources.
Transmission System Operator and Distribution System Operator – Substation
Primary and Secondary Substation – Transportation of electricity from production to consumption, managed by Welotec devices.
Offshore & Onshore
Generating renewable energy with the power of the wind, controlled by our stable devices.
Extreme enviroments
There rarely is a too high, too hot or too cold for our rugged devices.
