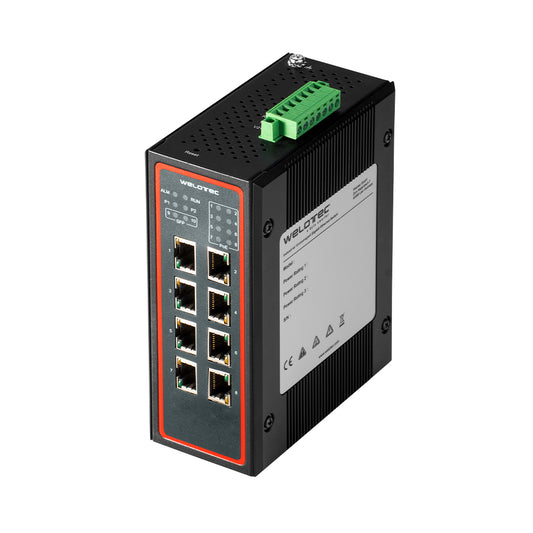

8/10 Port Gigabit PoE Switch UGS Series
0%
Secure Payment
Gigabit Ethernet
All Ethernet ports offer gigabit speed.
DIN-Rail mounting
Designed to be used in switching cabinets with DIN-Rail mounting.
Operating temperature
Wide operating temperature range for trouble-free operation in harsh environments.
Power over Ethernet
IEEE 802.3at Power over Ethernet Plus (PoE+) support.
Wide range power supply
12 - 57 V DC input for maximum power supply flexibilty.
Technical Details
General data
| Series | UGS-500 |
| Type | Unmanaged |
| Ethernet layer | Layer-2 |
Ethernet
| Connector TX | RJ45 |
| IEEE 8023 | 10BaseT / CSMA/CD (Ethernet) |
| IEEE 8023a | 10Base2 |
| IEEE 8023i | 10BaseT |
| IEEE 8023u | 100BaseTX/T4/FX (Fast Ethernet) |
| IEEE 8023ab | 1000BaseT(X) (Gigabit Ethernet over UTP) |
| IEEE 8023af | Power over Ethernet (PoE) |
| IEEE 8023at | Power over Ethernet Plus (PoE+) |
| IEEE 8023x | Full Duplex and Flow Control |
| Auto MDI-X | Yes |
Network characteristics
| Speed | 10/100/1000 Mbps |
| MAC adresses | 8096 |
Power supply
| Power supply V DC | 12 - 52 / 45 -52 (PoE) / 51 -52 (PoE+) V DC |
| Power supply connector | Terminal block 4-pin |
| Power consumption typical | 6 W |
| Power consumption typical with PoE | 130 W |
Physical characteristics
| Housing material | Metal |
| Ingress protection | IP30 |
| Dimensions (W x H x D) | 45 x 90 x 78 mm |
| Weight | 350 g |
| Installation | DIN rail |
Environmental
| Operating temperature range | -40 - +70 °C |
| Storage temperature range | -40 - +70 °C |
| Humidity | 5 - 95 % (non condensing) |
| Shock | IEC 60068-2-64 |
| Free fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-27 |
Approvals
| CE (EU) | Yes |
| REACH | Yes |
| RoHS | Yes |
Switching functions
| Store-and-forward Technology | Yes |
Ports
| Ports (total) | 10 |
| 10/100/1000BaseTX | 0 Ports |
| 10/100/1000BaseTX PoE | 8 Ports |
| 1000 Mbps SFP | 0 Ports |
| 10/100/1000 Mbps SFP | 2 Ports |
Ports
| Ports (total) | 8 |
| 10/100/1000BaseTX | 4 Ports |
| 10/100/1000BaseTX PoE | 4 Ports |
| 1000 Mbps SFP | 0 Ports |
| 10/100/1000 Mbps SFP | 0 Ports |
Technical Details
General data
| Series | UGS-500 |
| Type | Unmanaged |
| Ethernet layer | Layer-2 |
Ethernet
| Connector TX | RJ45 |
| IEEE 8023 | 10BaseT / CSMA/CD (Ethernet) |
| IEEE 8023a | 10Base2 |
| IEEE 8023i | 10BaseT |
| IEEE 8023u | 100BaseTX/T4/FX (Fast Ethernet) |
| IEEE 8023ab | 1000BaseT(X) (Gigabit Ethernet over UTP) |
| IEEE 8023af | Power over Ethernet (PoE) |
| IEEE 8023at | Power over Ethernet Plus (PoE+) |
| IEEE 8023x | Full Duplex and Flow Control |
| Auto MDI-X | Yes |
Network characteristics
| Speed | 10/100/1000 Mbps |
| MAC adresses | 8096 |
Power supply
| Power supply V DC | 12 - 52 / 45 -52 (PoE) / 51 -52 (PoE+) V DC |
| Power supply connector | Terminal block 4-pin |
| Power consumption typical | 6 W |
| Power consumption typical with PoE | 130 W |
Physical characteristics
| Housing material | Metal |
| Ingress protection | IP30 |
| Dimensions (W x H x D) | 45 x 90 x 78 mm |
| Weight | 350 g |
| Installation | DIN rail |
Environmental
| Operating temperature range | -40 - +70 °C |
| Storage temperature range | -40 - +70 °C |
| Humidity | 5 - 95 % (non condensing) |
| Shock | IEC 60068-2-64 |
| Free fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-27 |
Approvals
| CE (EU) | Yes |
| REACH | Yes |
| RoHS | Yes |
Switching functions
| Store-and-forward Technology | Yes |
Ports
| Ports (total) | 10 |
| 10/100/1000BaseTX | 0 Ports |
| 10/100/1000BaseTX PoE | 8 Ports |
| 1000 Mbps SFP | 0 Ports |
| 10/100/1000 Mbps SFP | 2 Ports |
Ports
| Ports (total) | 8 |
| 10/100/1000BaseTX | 4 Ports |
| 10/100/1000BaseTX PoE | 4 Ports |
| 1000 Mbps SFP | 0 Ports |
| 10/100/1000 Mbps SFP | 0 Ports |
