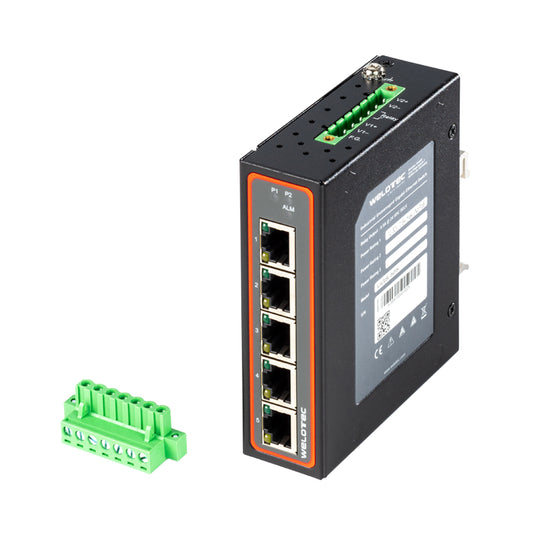

5 Port Gigabit Switch UGS Series
150
.00
€
Price excl. VAT
150
.00
€
Price excl. VAT
0%
Secure Payment
Gigabit Ethernet
All Ethernet ports offer gigabit speed.
DIN-Rail mounting
Designed to be used in switching cabinets with DIN-Rail mounting.
Operating temperature
Wide operating temperature range for trouble-free operation in harsh environments.
Slim housing
Very compact and slim housing takes up less space in the switching cabinet.
Redundant Power Supply
Features a redundant power supply with a range of 12 to 52 V DC.
Technical Details
General data
| Series | UGS-500 |
| Type | Unmanaged |
| Ethernet layer | Layer-2 |
| Ports (total) | 5 |
| Copper ports | 5 |
| Fiber ports | 0 |
| SFP ports | 0 |
| PoE ports | 0 |
Ethernet
| Connector TX | RJ45 |
| IEEE 8023 | 10BaseT / CSMA/CD (Ethernet) |
| IEEE 8023a | 10Base2 |
| IEEE 8023i | 10BaseT |
| IEEE 8023u | 100BaseTX/T4/FX (Fast Ethernet) |
| IEEE 8023ab | 1000BaseT(X) (Gigabit Ethernet over UTP) |
| IEEE 8023x | Full Duplex and Flow Control |
| Auto MDI-X | Yes |
Network characteristics
| Speed | 10/100/1000 Mbps |
| MAC adresses | 8096 |
Power supply
| PoE Voltage Booster | Yes (Max support 120W), by optional model |
| Input Voltage | 12~57 VDC |
| Input Current – PoE booster (-24V): | 12~23VDC, max 7A 24~57VDC, max 6A |
| Max. Power Consumption | 12~23VDC, max total 60W 24~57VDC, max total 120W |
| Redundant | Yes |
Physical characteristics
| Housing material | Metal |
| Ingress protection | IP30 |
| Dimensions (W x H x D) | 32 x 90 x 110 mm |
| Weight | 420 g |
| Installation | DIN rail |
Environmental
| Operating temperature range | -40 - +70 °C |
| Storage temperature range | -40 - +70 °C |
| Humidity | 5 - 95 % (non condensing) |
| Shock | MIL-STD-810F Method 516.5 |
| Free fall | MIL-STD-810F Method 516.5 |
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 |
Approvals
| CE (EU) | Yes |
| REACH | Yes |
| RoHS | Yes |
Switching functions
| Store-and-forward Technology | Yes |
