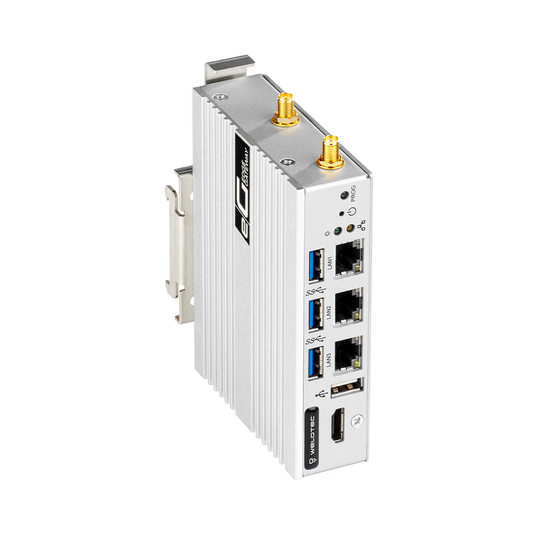

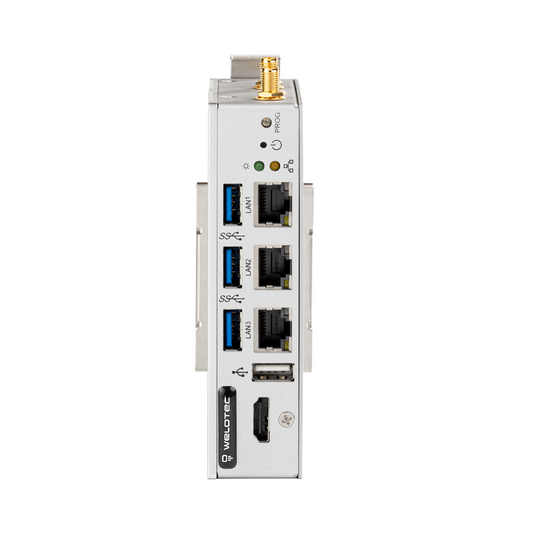

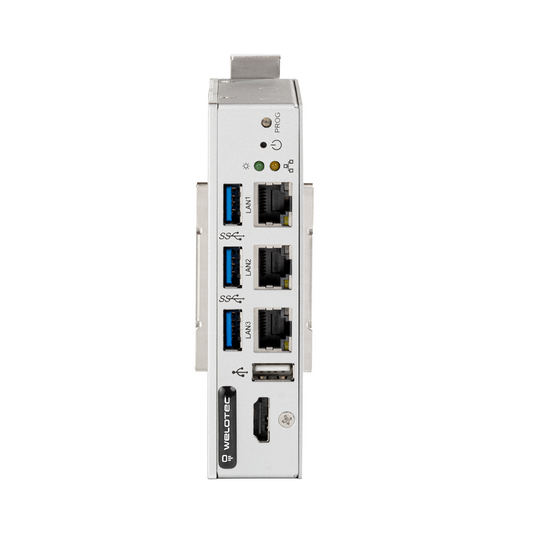

IoT Edge Computing Gateway EG500 Mk2

Welotec EG500Mk2 A11001-000101

Fanless

DIN-Rail

Newest version of EG500 series with Intel Atom® x6413E and up to 16 GB of RAM. Combines high performance and compact size
Fully integrated with Azure IoT Hub and Azure IoT Edge support. AWS integration via container
Azure Device Provisioning Service (DPS) with TPM
Integrated container runtime and Docker Compose support
Integrated firewall, routing, NAT, OpenVPN
Optional 4G LTE, 5G and WiFi connectivity

RAM:

8 GB RAM LPDDR4

16 GB RAM LPDDR4

Connectivity:

WIFI

4G LTE

non-wireless

Operating System Version:

egOS

860

.00

€

Price excl. VAT

Docker

Azure Edge Managed

Azure Certified Device

Cloud integration

Seamless cloud integration for distributed computing and deployment.

Container applications

Reliably develop container-based applications.

TPM

Integrated Trusted Platform Modul for secure device provisioning and authentication.

Security

Integrated firewall for the highest security standards.

Operating System

Software environment for flexible data processing and storage.

Edge computing

Easy and scalable system for applications directly at the Edge.

Technical Details

Operating Systems

Power Supply


DC Input	12 - 24 V DC (+/- 10 % tolerance)
Power supply	Minimum: 40 Watt Optional: 60 Watt, 12 V AC to DC tabletop power supply with connector for EU (WIPC05000560). US and UK on request.

Physical Characteristics


Dimensions	130 mm (H) x 90 mm (D) x 30 mm (W)
Dimensions with DIN rail	154 mm (H) x 105 mm (D) x 40 mm (W)
Weight	0.6 kg
Mounting	DIN rail mount
MTBF	> 170.000 hours at 45 °C

Environmental


Operating temperature	-20 °C to +60 °C
Operating Temperature (UL, cUL, CB)	-20 °C to +55 °C
Storage temperature	-40 °C to +85 °C
Humidity	5 - 95 %, non-condensing
IP rating	IP 20

Approvals


Approvals	CE, UKCA, FCC, ICES, UL, cUL, CB

Security


TPM	TPM 2.0 (functions: Azure DPS)
User Access	No root access
Signed Firmware Images	Yes (with egOS 1.5 and higher)

Storage


Free Storage for Container and Data	100 GB free storage optional: expandable up to 1 TB

Customs


Customs tariff number	85176200
Country of origin	Taiwan (TW)

Operating System


Welotec egOS	Local container runtime for applications Integrated Firewall, routing, NAT, and network management High IT security: hardened Linux system and no root access for users Linux distribution based on Yocto Easy configuration via CLI

Cloud Compatibility


Azure	Azure IoT Edge 1.4 and higher (native in OS) Azure IoT Hub Azure DPS
AWS	AWS Greengrass 2.0 (via Container)

Configuration


Remote configuration	SMART EMS 2.0 and higher for configuration management, OTA firmware upgrade, certificate management
Remote access	VPN Security Suite 3.0 and higher for remote access and maintenance for the EG500 and connected devices like PLC, HMI, IPC and more
Local	CLI Optional: local web interface for network configuration (device onboarding in restricted company networks)

System Information


Processor	Intel Atom® x6413E (1.50 GHz / 3.00 GHz)
CPU-Cores / Threads	4/4
PCH	Elkhart Lake SoC
Memory	8 GB LPDDR4 RAM

I/O Interfaces


Ethernet	3x 2.5 GbE (I226-IT)
USB	3x 3.0/ 1x 2.0
Display	Without the extension the HDMI port can only be used for the CLI
Serial Ports	1x RS-232 (factory option for RS-485 instead)
DI / DO	1x DI, 12 - 24 V
	1x DO, 12 - 24 V, max. 2 A, output voltage defined by DC Input

Extensions (limited to one extension per device)


WiFi	Sparklan WNFQ-262ACNI(BT) industrial Wifi with Qualcomm Atheros QCA6174A chipset, 802.11a/b/g/n/ ac/ac wave 2
	2x SMA-RP (f)


4G LTE	Quectel EM05-G LTE Cat. 4 module LTE: B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 /38/39/40/41
	2x SMA (f)


4G LTE	Quectel EM05-G LTE Cat. 4 module LTE: B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 /38/39/40/41
	2x SMA (f)

Technical Details

Power Supply


DC Input	12 - 24 V DC (+/- 10 % tolerance)
Power supply	Minimum: 40 Watt Optional: 60 Watt, 12 V AC to DC tabletop power supply with connector for EU (WIPC05000560). US and UK on request.

Physical Characteristics


Dimensions	130 mm (H) x 90 mm (D) x 30 mm (W)
Dimensions with DIN rail	154 mm (H) x 105 mm (D) x 40 mm (W)
Weight	0.6 kg
Mounting	DIN rail mount
MTBF	> 170.000 hours at 45 °C

Environmental


Operating temperature	-20 °C to +60 °C
Operating Temperature (UL, cUL, CB)	-20 °C to +55 °C
Storage temperature	-40 °C to +85 °C
Humidity	5 - 95 %, non-condensing
IP rating	IP 20

Approvals


Approvals	CE, UKCA, FCC, ICES, UL, cUL, CB

Security


TPM	TPM 2.0 (functions: Azure DPS)
User Access	No root access
Signed Firmware Images	Yes (with egOS 1.5 and higher)

Storage


Free Storage for Container and Data	100 GB free storage optional: expandable up to 1 TB

Customs


Customs tariff number	85176200
Country of origin	Taiwan (TW)

Operating System


Welotec egOS	Local container runtime for applications Integrated Firewall, routing, NAT, and network management High IT security: hardened Linux system and no root access for users Linux distribution based on Yocto Easy configuration via CLI

Cloud Compatibility


Azure	Azure IoT Edge 1.4 and higher (native in OS) Azure IoT Hub Azure DPS
AWS	AWS Greengrass 2.0 (via Container)

Configuration


Remote configuration	SMART EMS 2.0 and higher for configuration management, OTA firmware upgrade, certificate management
Remote access	VPN Security Suite 3.0 and higher for remote access and maintenance for the EG500 and connected devices like PLC, HMI, IPC and more
Local	CLI Optional: local web interface for network configuration (device onboarding in restricted company networks)

System Information


Processor	Intel Atom® x6413E (1.50 GHz / 3.00 GHz)
CPU-Cores / Threads	4/4
PCH	Elkhart Lake SoC
Memory	8 GB LPDDR4 RAM

I/O Interfaces


Ethernet	3x 2.5 GbE (I226-IT)
USB	3x 3.0/ 1x 2.0
Display	Without the extension the HDMI port can only be used for the CLI
Serial Ports	1x RS-232 (factory option for RS-485 instead)
DI / DO	1x DI, 12 - 24 V
	1x DO, 12 - 24 V, max. 2 A, output voltage defined by DC Input

Extensions (limited to one extension per device)


WiFi	Sparklan WNFQ-262ACNI(BT) industrial Wifi with Qualcomm Atheros QCA6174A chipset, 802.11a/b/g/n/ ac/ac wave 2
	2x SMA-RP (f)


4G LTE	Quectel EM05-G LTE Cat. 4 module LTE: B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 /38/39/40/41
	2x SMA (f)


4G LTE	Quectel EM05-G LTE Cat. 4 module LTE: B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 /38/39/40/41
	2x SMA (f)

Operating Systems

Integrated Edge

Welotec egOS – Operating System

All Welotec edge gateways are fully integrated with an operating system, creating a homogeneous layer for managing and deploying edge applications with a high level of security.

The egOS is a Linux-based operating system specifically designed for scalable edge applications and robust IT security. Its constant reliability and security are maintained through regular updates and upgrades. The system is optimized for cloud connectivity and container deployment. As an open platform, egOS supports customized solutions and facilitates software-driven innovation.

Discover our productivity solutions

Ready to use and scale

Azure Cloud

Our edge gateways bring cloud logic to the edge. With the fully integrated Azure IoT Edge Runtime, users can leverage Azure services and deploy applications directly from the cloud with just a few clicks. See the benefits at a glance:

Easily transfer data for cloud development
Local deployment of cloud intelligence
Device provisioning service for device rollout, with TPM 2.0
Flexible protocol selection for bi-directional data communication (MQTT, AMQP, Websocket)
